BM-ORF

Execution: straight connector.

Fitting material/coating: standard Cr(VI) free passivated steel, stainless steel on request.

Connection F: BSP male, seal: ring or 60° cone.

Connection E: UNF female, seal: O-ring ORFS.

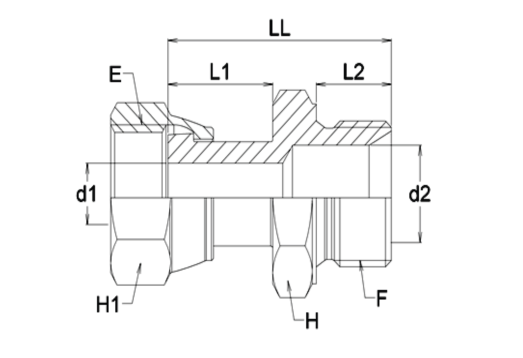

Ordercode	Productcode	F	E	L1	L2	LL	d1	d2	H	H1	Price
8078	N04BM04ORF	G 1/4"	9/16"-18 UNF	16	11	36	4	4	19	19	€ 7.87
8085	N04BM06ORF	G 1/4"	11/16"-16 UNF	19	11	39	6,5	4,7	19	22	€ 6.64
20385	N06BM04ORF	G 3/8"	9/16"-18	-	-	-	-	-	-	-	€ 10.93
8196	N06BM06ORF	G 3/8"	11/16"-16 UNF	19	12	40	6,5	6,5	22	22	€ 11.75
8205	N06BM08ORF	G 3/8"	13/16"-16 UNF	20	14	42	9	9	27	22	€ 8.89
8398	N08BM06ORF	G 1/2"	11/16"-16 UNF	19	14	43	6,5	11,1	27	22	€ 10.47
8412	N08BM08ORF	G 1/2"	13/16"-16 UNF	21	14	40	9	11,1	27	19	€ 13.94
8791	N12BM10ORF	G 3/4"	1"-14 UNF	25	16	51	11,5	16,7	32	30	€ 28.03
8802	N12BM12ORF	G 3/4"	1.3/16"-12 UNF	26,5	16	52,5	14	16,7	32	36	€ 17.23
9125	N16BM12ORF	G 1"	1.3/16"-12 UNF	26,5	19	56,5	14	22,2	41	36	€ 40.60
9137	N16BM16ORF	G 1"	1.7/16"-UNF	28	19	58	20	20	41	41	€ 33.43
9345	N20BM20ORF	G 1.1/4"	1.11/16"-12 UNF	28	20,5	67	26	30	50	50	€ 66.93
