BSP male WD - JIC male BMO-JM

BMO-JM

Execution: straight connector.

Fitting material/coating: standard Cr(VI) free passivated steel, stainless steel on request.

Connection E: UNF male, seal: JIC 74° cone.

Connection F: BSP male, seal: 60° cone or WD elastic seal.

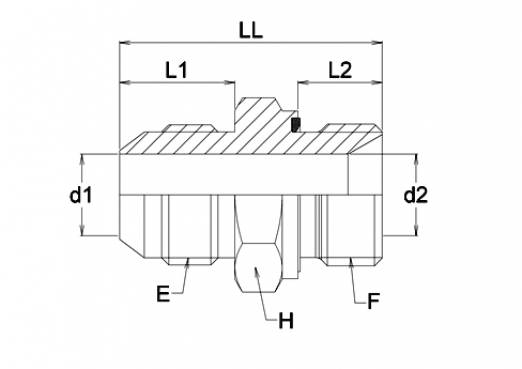

Ordercode Productcode F E L1 L2 LL d1 d2 H Price Amount
8034 N02BMO07JM G 1/8" 7/16"-20 UNF 14 8 29,5 4.4 4.4 14 € 3.47
8039 N02BMO09JM G 1/8" 9/16"-18 UNF 14,1 8 29,5 7,5 3,5 17 € 6.78
8088 N04BMO07JM G 1/4" 7/16"-20 UNF 14 12 34 4,4 4,4 19 € 4.65
8095 N04BMO08JM G 1/4" 1/2"-20 UNF 14 12 34 6 4,7 19 € 9.02
8100 N04BMO09JM G 1/4" 9/16"-18 UNF 14,1 12 34 7,5 4,7 19 € 4.10
15810 N04BMO12JM G 1/4" 3/4"-16 UNF 16,7 12 39 9,9 4,7 19 € 6.84
8198 N06BMO07JM G 3/8" 7/16"-20 UNF 14 12 34,5 4,4 7,9 22 € 6.37
8481 N06BMO08JM G 3/8" 1/2"-20 UNF - - - - - - € 19.73
8208 N06BMO09JM G 3/8" 9/16"-18 UNF 14,1 12 34,5 7,5 7,5 22 € 3.91
8215 N06BMO12JM G 3/8" 3/4"-16 UNF 16,7 12 39 9,9 7,9 22 € 7.31
8218 N06BMO14JM G 3/8" 7/8"-14 UNF 19,3 12 42 12,3 7,9 24 € 9.64
8414 N08BMO09JM G 1/2" 9/16"-18 UNF 14,1 14 41 7,5 11,1 27 € 6.02
8424 N08BMO12JM G 1/2" 3/4"-16 UNF 16,7 14 43,5 9,9 9,9 27 € 6.02
8429 N08BMO14JM G 1/2" 7/8"-14 UNF 19,3 14 46,5 11,1 11,1 27 € 7.86
8436 N08BMO17JM G 1/2" 1.1/16"-12 UNF 21,9 14 48,5 15,5 11,1 30 € 8.89
8800 N12BMO12JM G 3/4" 3/4"-16 UNF 16,7 16 45 9,9 16,7 32 € 8.97
8804 N12BMO14JM G 3/4" 7/8"-14 UNF 19,3 16 47,5 12,3 16,7 32 € 11.76
8812 N12BMO17JM G 3/4" 1.1/16"-12 UNF 21,9 16 50 15,5 15,5 32 € 10.94
9408 N12BMO21JM G 3/4" 1.5/16"-12 UNF 23,1 16 53 21,5 16,7 36 € 16.10
9140 N16BMO17JM G 1" 1.1/16"-12 UNF 21,9 18 56 15,5 22,2 41 € 16.06
9542 N16BMO26JM G 1" 1.5/8"-12 24,3 18 58 27,5 22,2 46 € 33.22
9338 N20BMO17JM G 1.1/4" 1.1/16"-12 UNF 21,9 20 57 15,5 28,6 50 € 47.99
9347 N20BMO21JM G 1.1/4" 1.5/16"-12 UNF 23,1 20 61 21,5 28,6 50 € 35.22
9353 N20BMO26JM G 1.1/4" 1.5/8"-12 UNF 24,3 20 62 27,5 27,5 50 € 37.05
9555 N24BMO26JM G 1.1/2" 1.5/8"-12 24,3 22 64 27,5 33,3 55 € 73.14
9616 N24BMO30JM G 1.1/2" 1.7/8"-12 27,5 22 67,5 33 33 55 € 50.94
