BSP female swivel O-RING 90° CILWMBF90 - DKOR 90

CILWMBF90 - DKOR 90

Execution : interlock 90° elbow

Material: standard zinc plated steel

Connection : BSP swivel female thrust wire nut

Seal : 60° cone with O-ring




Customers who bought this product also viewed:

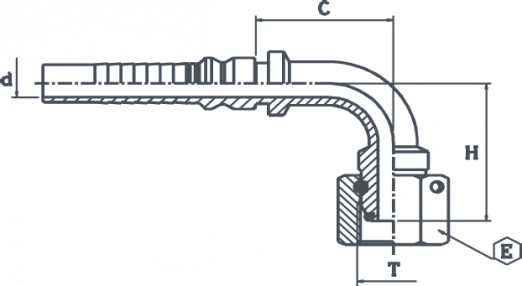

Ordercode Productcode inch mm dash T BSP d mm C mm E mm H mm Price Amount
6171 CIL12BF90S12 3/4" 19,0 12 3/4"-14 14,0 32 54,0 59,0 € 33.24
6172 CIL16BF90S16 1" 25,4 16 1"-11 20,0 38 69,0 72,0 € 45.71
6173 CIL20BF90S20 1.1/4" 31,8 20 1.1/4"-11 26,0 50 88,0 79,0 € 74.35
6174 CIL24BF90S24 1.1/2" 38,1 24 1.1/2"-11 30,0 55 98,0 95,0 € 118.51
6175 CIL32BF90S32 2" 50,8 32 2"-11 40,0 70 128,0 132 € 222.17
