METR. female swivel 45° DIN 3865-S CILMSOF45 - DKOS 45

CILMSOF45 - DKOS 45

Execution : interlock 45° elbow

Material: standard zinc plated steel

Connection : metric swivel female DIN 3865 series S

Seal : 24° with O-ring




Customers who bought this product also viewed:

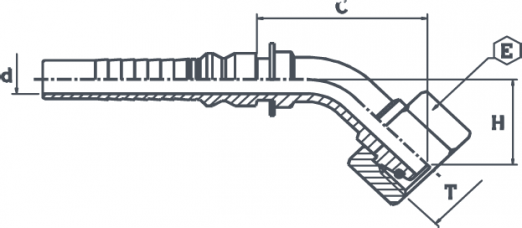

Ordercode Productcode ID inch ID mm ID dash T metr. Ød mm E mm DIN serie C mm H mm Price Amount
6212 CIL30MSOF2045S12 3/4" 19,0 12 M30x2 14,0 41 20S 70,0 30,0 € 36.64
6213 CIL36MSOF2545S12 3/4" 19,0 12 M36x2 14,0 46 25S 71,0 31,0 € 72.21
6216 CIL36MSOF2545S16 1" 25,4 16 M36x2 20,0 46 25S 86,0 38,0 € 77.50
6214 CIL42MSOF3045S16 1" 25,4 16 M42x2 20,0 50 30S 80,0 33,0 € 56.56
17775 CIL42MSOF3045S20 1.1/4" 31,8 20 M42x2 26,0 50 30S 103,0 35,0 € 122.14
6215 CIL52MSOF3845S20 1.1/4" 31,8 20 M52x2 26,0 60 38S 99,0 47,0 € 99.77
