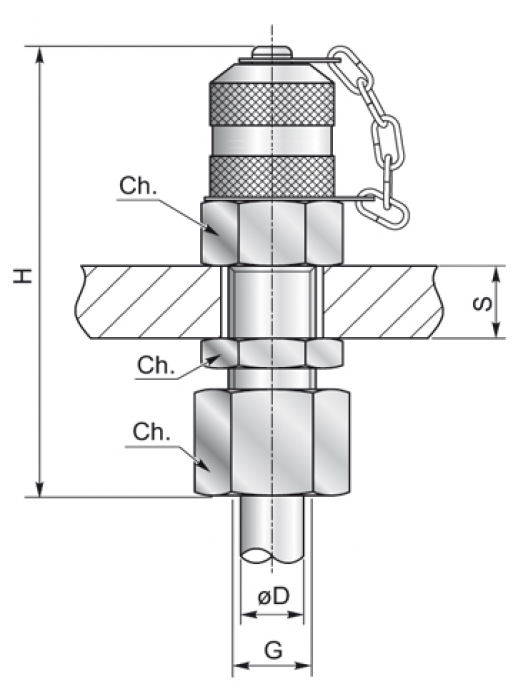

TSBL - Bulkhead

Test connection: M16x2 with cap.
System connection: Tube connection.
Seal: Cutting ring or DKOL/S swivel.
Materials: galvanised carbon steel (on request: Stainless Steel AISI 316).

Applications: pressure control, lubrication, air bleeding and sampling.
Seal: NITRILE BUNA N (NBR), on request: FKM VITON Medium.
Temperature: -30 ° C. + 125 °C (NITRILE BUNA N); -25 °C. + 230 °C (FKM).
Suitable fluids: mineral hydraulic oil; other liquids on request.luids: mineral hydraulic oil; other liquids on request.
