Max. 1" - 6 SP - 2x crimp

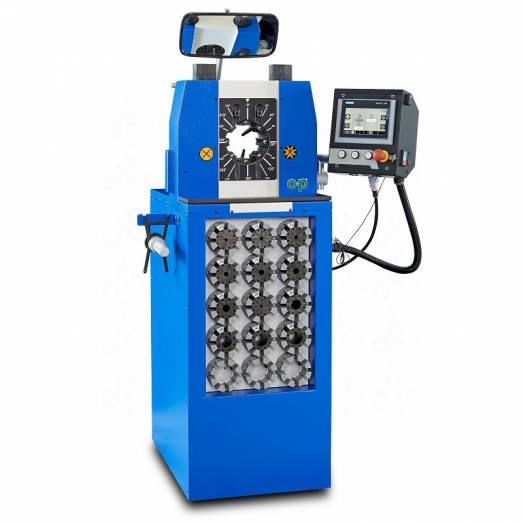

TUBOMATIC V59ES

Tubomatic V59ES volume crimping machine is ideal for crimping hydraulic hoses up to 1" six spirals and 1"1/4 four spirals.

MAIN FEATURES:

- self lubricating moving components;
- new electronic control with touch screen colour display;
- new silent pump;
- "6 o'clock position" die in fixed position for greater stability of the hose during crimping;
- particularly narrow crimping head for crimping pipe ends with large flanges or 90° couplings.

Technical Features

SWAGING FORCE	140 TON (155 US TONS)
6 SPIRALS 2 PIECES	1"
4 SPIRALS 2 PIECES	1" 1/4
2 SPIRALS	1" 1/2°
MAXIMUM SWAGING DIAMETER	67 mm* (2.638")
SWAGING/HOUR	3900•
DIES OPENING	Ø + 50 mm (Ø + 1.970")
STANDARD VOLTAGE	375V-420V 50HZ 3PH
MOTOR POWER	5,5 Kw (7.5 Hp)
DIMENSIONS	530x740x1480 mm (20.882"x29.156"x58.312")
WEIGHT WITHOUT OIL	469 Kg (1000 lbs)
OIL	70 lt
DOUBLE EFFECT CYLINDER	incl.
BACK LIMIT SWITCH	incl.
BACK MIRROR	incl.
PRESSURE CONTROL SYSTEM	OPTIONAL
SPEED REDUCTION SYSTEM	OPTIONAL
DATA TRANSFER KIT	OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM	OPTIONAL
ELECTRIC PEDAL	OPTIONAL
INTERLOCK DIES	OPTIONAL
MARKING DIES	OPTIONAL
SPECIAL DIES	OPTIONAL
SPECIAL VOLTAGE	OPTIONAL
°	WITH SPECIAL DIES
*	With special dies Ø 54 mm upon request
•	Theoretical with 1/2" hose
