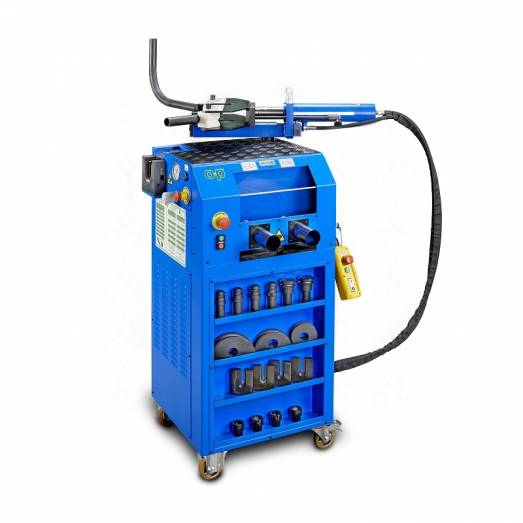

MINI CENTER
MINI CENTER
This small and inexpensive multifunctional mobile unit allows carrying out all operations required to machining rigid hydraulic tubes: internal and external deburring, bending, pre-mounting rings according to the DIN 2353 standards, 37° flaring of rigid stainless steel (AISI 316 TI) and carbon steel (ST 37.4) rigid tubes, for 6 to 42 mm and 4 mm thick fittings complying with the SAE and JIC standards.
Technical Features
| 24° PRE-ASSEMBLING | 6 > 42x4 mm (0.236">1.654"x0.158") |
| 37° FLARING | 6 > 42x4 mm (0.236">1.654"x0.158") |
| BENDING | 6 > 42x4 mm (0.236">1.655"x0.158") |
| DEBURRING | MAX Ø 42x4 mm (1.655"x0.158") |
| MATERIALS | AISI 316 TI - ST 37.4 |
| DIMENSIONS L x W x H | 755x620x1200 mm (29.724"x24.409"x47.244") |
| WEIGHT | 210 KG (460 lbs) |
| STANDARD VOLTAGE | 230V 50HZ 1PH |
| MOTOR POWER | MAX 1.7 Kw (2.3 Hp) |
| SAFETY PROTECTION | incl. |
| CONTROL BOARD | incl. |
| OIL | incl. |
| TOOL HOLDER | incl. |
| SPECIAL VOLTAGE | OPTIONAL |
