BSP 45°
45° BSP Male - BSP Male O-Ring

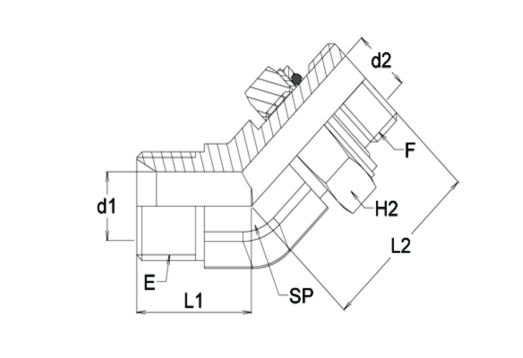

Uitvoering: instelbare 45° verbindingsnippel.
Materiaal/coating: standaard Cr(VI) vrij gepassiveerd staal, RVS op aanvraag.
Aansluiting E: BSP buitendraad, afdichting: 60° conus.
Aansluiting F: BSP buitendraad, afdichting: O-ring.
-
45° BSP Male - BSP Male O-Ring N04BM4504BMOStockPrice € 9.89
-
45° BSP Male - BSP Male O-Ring N06BM4506BMOStockPrice € 16.18
-
45° BSP Male - BSP Male O-Ring N08BM4508BMOStockPrice € 23.71
-
45° BSP Male - BSP Male O-Ring N12BM4512BMOStockPrice € 34.48
-
45° BSP Male - BSP Male O-Ring N16BM4516BMOStockPrice € 45.43
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 E
|
F
|
L1
|
L2
|
D1
|
D2
|
H2
|
Sp
|
Amount of this product left in stock
 Stock
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17786 | N04BM4504BMO | G 1/4" | G 1/4" | 20,3 | 29 | 4,7 | 7,5 | 19 | 14 | |||
| 8225 | N06BM4506BMO | G 3/8" | G 3/8" | 22,8 | 33 | 7,9 | 9,9 | 22 | 16 | |||
| 17789 | N08BM4508BMO | G 1/2" | G 1/2" | 27 | 36 | 11 | 12,5 | 27 | 22 | |||
| 8822 | N12BM4512BMO | G 3/4" | G 3/4" | 32 | 42 | 16,4 | 16,4 | 32 | 27 | |||
| 9158 | N16BM4516BMO | G 1" | G 1" | 34 | 44 | 21,5 | 21 | 41 | 33 |
