BSP 90°
90° BSP Male - BSP Male O-Ring
Uitvoering: instelbare 90° verbindingsnippel.
Materiaal/coating: standaard Cr(VI) vrij gepassiveerd staal, RVS op aanvraag.
Aansluiting E: BSP buitendraad, afdichting: 60° conus.
Aansluiting F: BSP buitendraad, afdichting: O-ring.
-
90° BSP Male - BSP Male O-Ring N04BM9004BMOStockPrice € 10.48
-
90° BSP Male - BSP Male O-Ring N06BM9006BMOStockPrice € 14.41
-
90° BSP Male - BSP Male O-Ring N08BM9008BMOStockPrice € 23.41
-
90° BSP Male - BSP Male O-Ring N12BM9008BMOStockPrice € 37.15
-
90° BSP Male - BSP Male O-Ring N12BM9012BMOStockPrice € 30.73
-
90° BSP Male - BSP Male O-Ring N16BM9016BMOStockPrice € 38.25
-
90° BSP Male - BSP Male O-Ring N24BM9024BMOStockPrice € 72.64
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |

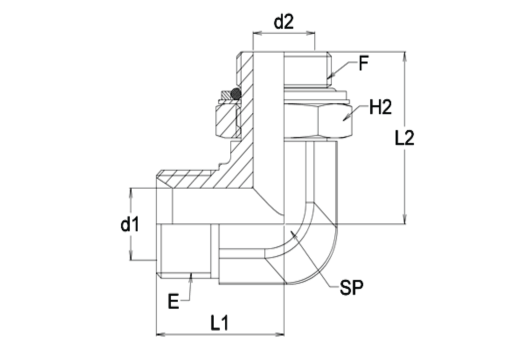

 E
|
F
|
L1
|
L2
|
D1
|
D2
|
H2
|
Sp
|
Amount of this product left in stock
 Stock
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8113 | N04BM9004BMO | G 1/4" | G 1/4" | 26 | 35 | 4,7 | 7,5 | 19 | 14 | |||
| 8229 | N06BM9006BMO | G 3/8" | G 3/8" | 30 | 36 | 7,9 | 9,9 | 22 | 19 | |||
| 8446 | N08BM9008BMO | G 1/2" | G 1/2" | 35 | 43 | 11,1 | 12,3 | 27 | 22 | |||
| 8825 | N12BM9008BMO | G 3/4" | G 1/2" | 42 | 48,5 | - | - | 27 | 27 | |||
| 8828 | N12BM9012BMO | G 3/4" | G 3/4" | 42 | 47 | 16,7 | 15,5 | 36 | 27 | |||
| 9162 | N16BM9016BMO | G 1" | G 1" | 46 | 53 | 23 | 21,5 | 41 | 33 | |||
| 11599 | N24BM9024BMO | G 1.1/2" | G 1.1/2" | 58,5 | 60 | 34,9 | 32,9 | 55 | 48 |
