Staal

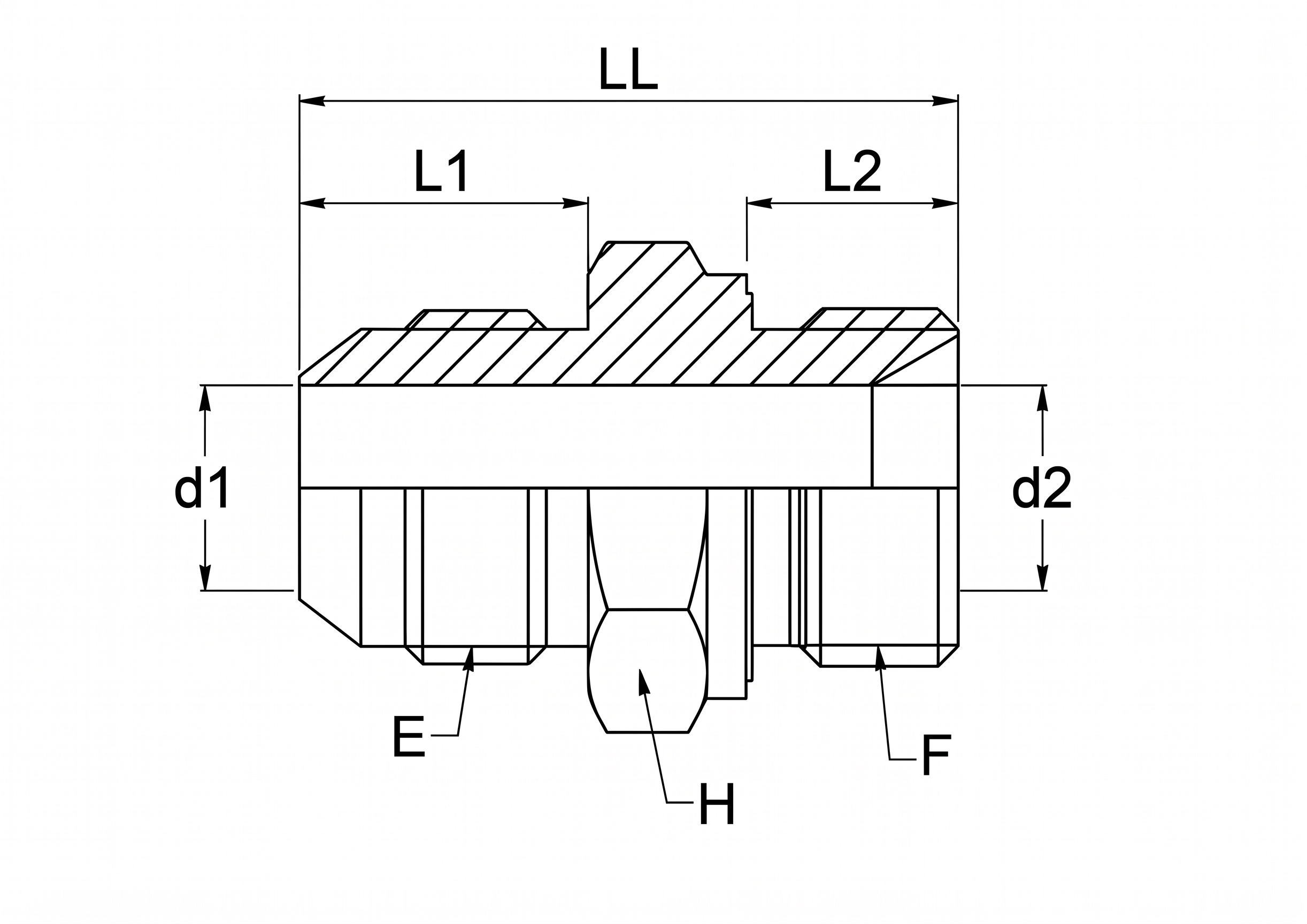

BSP Male O-ring - JIC Male
Uitvoering: rechte verbindingsnippel.
Materiaal/coating: standaard Cr(VI) vrij gepassiveerd staal, RVS op aanvraag.
Aansluiting E: UNF buitendraad, afdichting: JIC 74° conus.
Aansluiting F: BSP buitendraad, afdichting: O-ring met metalen steunring.
-
BSP Male O-ring - JIC Male N06BMOS17JMStock
-
BSP Male O-ring - JIC Male N08BMOS07JMStock
-
BSP Male O-ring - JIC Male N04BMOS12JMStock
-
BSP Male O-ring - JIC Male N06BMOS08JMStock
-
BSP Male O-ring - JIC Male N06BMOS12JMStock
-
BSP Male O-ring - JIC Male N16BMOS21JMStock
-
BSP Male O-ring - JIC Male N08BMOS17JMStock
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 F
|
E
|
Amount of this product left in stock
 Stock
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|
| 8222 | N06BMOS17JM | G 3/8 | 1.1/16-12 UNF | |||
| 8323 | N08BMOS07JM | G 1/2 | 7/16-20 UNF | |||
| 8104 | N04BMOS12JM | G 1/4 | 3/4-16 UNF | |||
| 8203 | N06BMOS08JM | G 3/8 | 1/2-20 UNF | |||
| 8863 | N06BMOS12JM | G 3/8 | 3/4-16 UNF | |||
| 9415 | N16BMOS21JM | G 1" | 1.5/16-12 UNF | |||
| 9231 | N08BMOS17JM | G 1/2 | 1.1/16-12 UNF |
