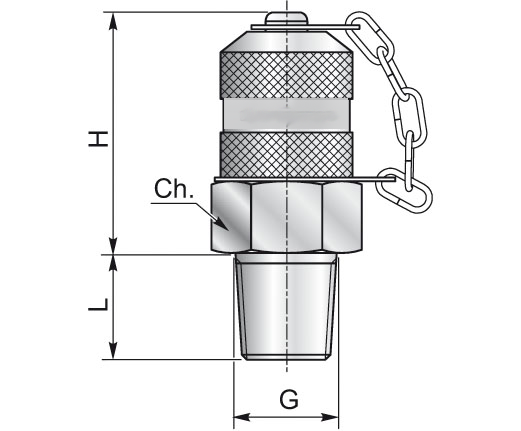

Meetkoppeling Schroef M16x2
BSPT male & NPTF male
Meetaansluiting: M16x2 met afsluitdop.
Systeemaansluiting: BSPT of NPTF buitendraad conisch met metallisch afdichting op schroefdraad DIN 3852-2 vorm C.
Materialen: verzinkt koolstofstaal (op aanvraag: roestvrij staal AISI 316).
-
BSPT male & NPTF male T02BMT16X2MMStockPrice € 18.29
-
BSPT male & NPTF male T04BMT16X2MMStockPrice € 22.83
-
BSPT male & NPTF male T02NM16X2MMStockPrice € 18.29
-
BSPT male & NPTF male T04NM16X2MMStockPrice € 17.91
-
BSPT male & NPTF male T06NM16x2MMStockPrice € 18.71
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 G
|
H
|
L
|
Ch
|
Pn bar
|
Afdichting
|
Materiaal
|
Amount of this product left in stock
 Stock
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12658 | T02BMT16X2MM | 1/8" BSPT | 37 | 10 | 17 | 400 | schroefdraad | CS | |||
| 12667 | T04BMT16X2MM | 1/4" BSPT | 37 | 12 | 19 | 630 | schroefdraad | CS | |||
| 12659 | T02NM16X2MM | 1/8 NPTF | 37 | 10 | 17 | 400 | schroefdraad | CS | |||
| 11471 | T04NM16X2MM | 1/4" NPTF | 37 | 14 | 19 | 630 | schroefdraad | CS | |||
| 12677 | T06NM16X2MM | 3/8" NPTF | 37 | 16 | 22 | 630 | schroefdraad | CS |
