ORFS UNF
ORFS UNF wartel 45°
ORFS UNF
ORFS UNF wartel 45°
Uitvoering : 45° gebogen
Materiaal: standaard verzinkt automatenstaal
Aansluiting : UNF wartel binnendraad
Afdichting : O-ring ORFS (O’Ring Face Seal) volgens SAE J516
ORFS UNF wartel 45°
CN04LORF45S06 · 24171
Not on stock
Price
€ 13,68
ORFS UNF wartel 45°
CN06LORF45S06 · 24172
Not on stock
Price
€ 14,13
ORFS UNF wartel 45°
CN08LORF45S06 · 24174
Not on stock
Price
€ 15,34
ORFS UNF wartel 45°
CN06LORF45S08 · 24173
Not on stock
Price
€ 18,40
ORFS UNF wartel 45°
CN08LORF45S08 · 24175
Not on stock
Price
€ 19,77
ORFS UNF wartel 45°
CN10LORF45S08 · 24176
Not on stock
Price
€ 21,83
ORFS UNF wartel 45°
CN12LORF45S08 · 24179
Not on stock
Price
€ 34,95
ORFS UNF wartel 45°
CN10LORF45S10 · 24177
On stock
Price
€ 42,79
ORFS UNF wartel 45°
CN12LORF45S10 · 24180
On stock
Price
€ 46,27
ORFS UNF wartel 45°
CN10LORF45S12 · 24178
On stock
Price
€ 48,30
ORFS UNF wartel 45°
CN12LORF45S12 · 24181
On stock
Price
€ 28,48
ORFS UNF wartel 45°
CN16LORF45S12 · 24183
On stock
Price
€ 52,82
ORFS UNF wartel 45°
CN20LORF45S12 · 24185
On stock
Price
€ 95,87
ORFS UNF wartel 45°
CN12LORF45S16 · 24182
On stock
Price
€ 80,56
ORFS UNF wartel 45°
CN16LORF45S16 · 24184
On stock
Price
€ 43,21
ORFS UNF wartel 45°
CN20LORF45S16 · 24186
On stock
Price
€ 79,17
ORFS UNF wartel 45°
CN20LORF45S20 · 24187
On stock
Price
€ 72,24
ORFS UNF wartel 45°
CN24LORF45S20 · 24188
On stock
Price
€ 94,94
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 Id inch
|
 Id mm
|
 Id dash
|

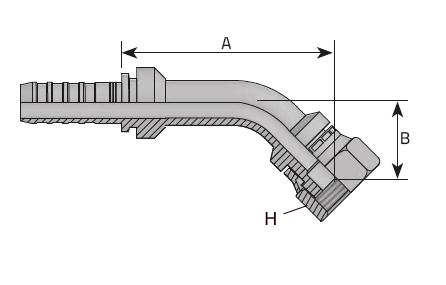

T unf
|
H mm
|
B mm
|
A mm
|
Amount of this product left in stock
 Stock
|
The bruto price of the product
 Brutoprice
|
The netto price of the product
Nettoprice
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24171 | CN04LORF45S06 | 3/8" | 9,5 | 06 | 9/16-18 | 22 | 25,8 | 62,8 | € 19.54 | € 13.68 | |||
| 24172 | CN06LORF45S06 | 3/8" | 9,5 | 06 | 11/16-16 | 22 | 26,3 | 70,6 | € 20.19 | € 14.13 | |||
| 24174 | CN08LORF45S06 | 3/8" | 9,5 | 06 | 13/16-16 | 27 | 31,5 | 72,8 | € 21.91 | € 15.34 | |||
| 24173 | CN06LORF45S08 | 1/2" | 12,7 | 08 | 11/16-16 | 27 | 25,3 | 75,8 | € 26.28 | € 18.40 | |||
| 24175 | CN08LORF45S08 | 1/2" | 12,7 | 08 | 13/16-16 | 27 | 33,6 | 78,6 | € 28.24 | € 19.77 | |||
| 24176 | CN10LORF45S08 | 1/2" | 12,7 | 08 | 1-14 | 27 | 31,1 | 77,1 | € 31.18 | € 21.83 | |||
| 24179 | CN12LORF45S08 | 1/2" | 12,7 | 08 | 1.3/16-16 | 30 | 36,1 | 79,1 | € 49.93 | € 34.95 | |||
| 24177 | CN10LORF45S10 | 5/8" | 16,0 | 10 | 1-14 | 32 | 35,3 | 77,9 | € 61.13 | € 42.79 | |||
| 24180 | CN12LORF45S10 | 5/8" | 16,0 | 10 | 1.3/16-16 | 32 | 32,7 | 76,3 | € 66.10 | € 46.27 | |||
| 24178 | CN10LORF45S12 | 3/4" | 19,0 | 12 | 1-14 | 34 | 39,4 | 79,5 | € 69.00 | € 48.30 | |||
| 24181 | CN12LORF45S12 | 3/4" | 19,0 | 12 | 1.3/16-16 | 34 | 40,4 | 81,0 | € 40.69 | € 28.48 | |||
| 24183 | CN16LORF45S12 | 3/4" | 19,0 | 12 | 1.7/16-12 | 36 | 43,6 | 84,7 | € 75.46 | € 52.82 | |||
| 24185 | CN20LORF45S12 | 3/4" | 19,0 | 12 | 1.11/16-12 | 41 | 46,9 | 112,5 | € 136.96 | € 95.87 | |||
| 24182 | CN12LORF45S16 | 1" | 25,4 | 16 | 1.3/16-16 | 42 | 44,1 | 103,1 | € 115.09 | € 80.56 | |||
| 24184 | CN16LORF45S16 | 1" | 25,4 | 16 | 1.7/16-12 | 42 | 44,4 | 105,0 | € 61.73 | € 43.21 | |||
| 24186 | CN20LORF45S16 | 1" | 25,4 | 16 | 1.11/16-12 | 42 | 43,3 | 112,8 | € 113.10 | € 79.17 | |||
| 24187 | CN20LORF45S20 | 1.1/4" | 31,8 | 20 | 1.11/16-12 | 41 | 51,3 | 118,4 | € 103.20 | € 72.24 | |||
| 24188 | CN24LORF45S20 | 1.1/4" | 31,8 | 20 | 2-12 | 50 | 45,3 | 116,4 | € 135.63 | € 94.94 |
