ORFS UNF
ORFS UNF wartel 90°
ORFS UNF
ORFS UNF wartel 90°

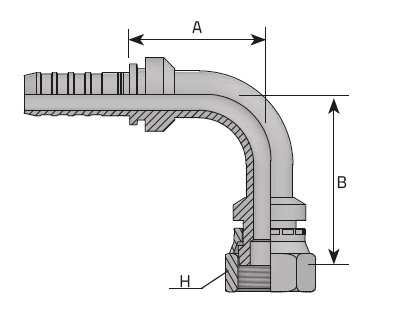

Uitvoering : 90° gebogen
Materiaal: standaard verzinkt automatenstaal
Aansluiting : UNF wartel binnendraad
Afdichting : O-ring ORFS (O’Ring Face Seal) according SAE J516
ORFS UNF wartel 90°
CN08LORF90S08 · 24193
Not on stock
Price
€ 18,82
ORFS UNF wartel 90°
CN10LORF90S08 · 24194
Not on stock
Price
€ 20,78
ORFS UNF wartel 90°
CN12LORF90S08 · 24197
Not on stock
Price
€ 33,29
ORFS UNF wartel 90°
CN10LORF90S10 · 24195
On stock
Price
€ 40,75
ORFS UNF wartel 90°
CN12LORF90S10 · 24198
On stock
Price
€ 44,07
ORFS UNF wartel 90°
CN10LORF90S12 · 24196
On stock
Price
€ 46,00
ORFS UNF wartel 90°
CN12LORF90S12 · 24199
On stock
Price
€ 27,13
ORFS UNF wartel 90°
CN16LORF90S12 · 24201
On stock
Price
€ 50,30
ORFS UNF wartel 90°
CN20LORF90S12 · 24203
On stock
Price
€ 91,31
ORFS UNF wartel 90°
CN12LORF90S16 · 24200
On stock
Price
€ 80,56
ORFS UNF wartel 90°
CN16LORF90S16 · 24202
On stock
Price
€ 43,21
ORFS UNF wartel 90°
CN20LORF90S16 · 24204
On stock
Price
€ 79,17
ORFS UNF wartel 90°
CN20LORF90S20 · 24205
On stock
Price
€ 72,24
ORFS UNF wartel 90°
CN24LORF90S20 · 24206
On stock
Price
€ 94,94
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 Id inch
|
Id mm
|
 Id dash
|
T unf
|
H mm
|
B mm
|
A mm
|
Amount of this product left in stock
 Stock
|
The bruto price of the product
 Brutoprice
|
The netto price of the product
Nettoprice
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24193 | CN08LORF90S08 | 1/2" | 12,7 | 08 | 13/16-16 | 27 | 58,1 | 42,6 | € 26.89 | € 18.82 | |||
| 24194 | CN10LORF90S08 | 1/2" | 12,7 | 08 | 1-14 | 27 | 54,7 | 44,1 | € 29.69 | € 20.78 | |||
| 24197 | CN12LORF90S08 | 1/2" | 12,7 | 08 | 1.3/16-16 | 30 | 58,1 | 43,1 | € 47.55 | € 33.29 | |||
| 24195 | CN10LORF90S10 | 5/8" | 16,0 | 10 | 1-14 | 32 | 65,2 | 59,1 | € 58.22 | € 40.75 | |||
| 24198 | CN12LORF90S10 | 5/8" | 16,0 | 10 | 1.3/16-16 | 32 | 64,6 | 54,1 | € 62.95 | € 44.07 | |||
| 24196 | CN10LORF90S12 | 3/4" | 19,0 | 12 | 1-14 | 34 | 72,2 | 60,6 | € 65.71 | € 46.00 | |||
| 24199 | CN12LORF90S12 | 3/4" | 19,0 | 12 | 1.3/16-16 | 34 | 73,6 | 61,6 | € 38.76 | € 27.13 | |||
| 24201 | CN16LORF90S12 | 3/4" | 19,0 | 12 | 1.7/16-12 | 36 | 77,5 | 62,1 | € 71.86 | € 50.30 | |||
| 24203 | CN20LORF90S12 | 3/4" | 19,0 | 12 | 1.11/16-12 | 41 | 83,9 | 97,6 | € 130.44 | € 91.31 | |||
| 24200 | CN12LORF90S16 | 1" | 25,4 | 16 | 1.3/16-16 | 42 | 86,5 | 75,5 | € 115.09 | € 80.56 | |||
| 24202 | CN16LORF90S16 | 1" | 25,4 | 16 | 1.7/16-12 | 42 | 85,6 | 79,6 | € 61.73 | € 43.21 | |||
| 24204 | CN20LORF90S16 | 1" | 25,4 | 16 | 1.11/16-12 | 42 | 99,4 | 97,5 | € 113.10 | € 79.17 | |||
| 24205 | CN20LORF90S20 | 1.1/4" | 31,8 | 20 | 1.11/16-12 | 41 | 99,9 | 98,1 | € 103.20 | € 72.24 | |||
| 24206 | CN24LORF90S20 | 1.1/4" | 31,8 | 20 | 2-12 | 50 | 90,6 | 103,1 | € 135.63 | € 94.94 |
