Rechte Koppeling - Staal
SV Inschroef Schotkoppeling BSPP - L/S
Rechte Koppeling - Staal
SV Inschroef Schotkoppeling BSPP - L/S
De rechte inschroef-schotkoppeling biedt de perfecte combinatie tussen een poortaansluiting en een stabiele wanddoorvoer. Deze fitting is aan de inschroefzijde voorzien van een cilindrische BSPP-draad met een elastische WD-afdichting (soft seal) conform ISO 1179, wat een lekvrije montage in ventielblokken of cilinders garandeert. De schotzijde beschikt over een 24° pijpopname volgens ISO 8434-1, ideaal voor het veilig geleiden van hydraulische lijnen door panelen of beugels.
Dubbele Functionaliteit: Combineert een poortaansluiting met een robuuste schotbevestiging.
WD Soft Seal: De elastische afdichting aan de draadzijde elimineert 'zweetlekkages' en absorbeert trillingen.
Hoogwaardige Coating: Cr(VI)-vrij gepassiveerd staal voor een milieuvriendelijke en duurzame corrosiebescherming.
Let op: Deze koppeling wordt geleverd als losse body (exclusief moer, snijring en schot-borgmoer).
SV Inschroef Schotkoppeling BSPP - L/S
XSV06LR18WD · 11622
Not on stock
Price
€ 19,68
SV Inschroef Schotkoppeling BSPP - L/S
XSV06LR14WD · 11623
Not on stock
Price
€ 33,60
SV Inschroef Schotkoppeling BSPP - L/S
XSV08LR14WD · 11624
Not on stock
Price
€ 11,97
SV Inschroef Schotkoppeling BSPP - L/S
XSV08LR38WD · 11625
Not on stock
Price
€ 16,04
SV Inschroef Schotkoppeling BSPP - L/S
XSV08LR12WD · 11626
On stock
Price
€ 16,90
SV Inschroef Schotkoppeling BSPP - L/S
XSV10LR14WD · 11627
On stock
Price
€ 12,69
SV Inschroef Schotkoppeling BSPP - L/S
XSV10LR38WD · 11628
On stock
Price
€ 11,33
SV Inschroef Schotkoppeling BSPP - L/S
XSV10LR12WD · 11629
On stock
Price
€ 15,52
SV Inschroef Schotkoppeling BSPP - L/S
XSV12LR14WD · 11630
On stock
Price
€ 17,57
SV Inschroef Schotkoppeling BSPP - L/S
XSV12LR38WD · 7987
On stock
Price
€ 13,80
SV Inschroef Schotkoppeling BSPP - L/S
XSV12LR12WD · 7670
On stock
Price
€ 14,13
SV Inschroef Schotkoppeling BSPP - L/S
XSV15LR12WD · 7675
On stock
Price
€ 15,29
SV Inschroef Schotkoppeling BSPP - L/S
XSV15LR34WD · 11631
On stock
Price
€ 46,40
SV Inschroef Schotkoppeling BSPP - L/S
XSV18LR12WD · 11632
On stock
Price
€ 22,86
SV Inschroef Schotkoppeling BSPP - L/S
XSV18LR34WD · 11633
Not on stock
Price
€ 47,38
SV Inschroef Schotkoppeling BSPP - L/S
XSV18LR1WD · 11634
On stock
Price
€ 61,68
SV Inschroef Schotkoppeling BSPP - L/S
XSV22LR34WD · 14662
On stock
Price
€ 36,09
SV Inschroef Schotkoppeling BSPP - L/S
XSV28LR34WD · 14663
On stock
Price
€ 40,22
SV Inschroef Schotkoppeling BSPP - L/S
XSV28LR1WD · 14664
Not on stock
Price
€ 37,22
SV Inschroef Schotkoppeling BSPP - L/S
XSV35LR114WD · 16530
On stock
Price
€ 77,55
SV Inschroef Schotkoppeling BSPP - L/S
XSV42LR112WD · 17454
Not on stock
Price
€ 112,26
SV Inschroef Schotkoppeling BSPP - L/S
XSV10SR38WD · 7669
Not on stock
Price
€ 26,82
SV Inschroef Schotkoppeling BSPP - L/S
XSV12SR38WD · 7672
On stock
Price
€ 16,04
SV Inschroef Schotkoppeling BSPP - L/S
XSV12SR12WD · 16383
On stock
Price
€ 12,56
SV Inschroef Schotkoppeling BSPP - L/S
XSV14SR12WD · 7674
On stock
Price
€ 35,98
SV Inschroef Schotkoppeling BSPP - L/S
XSV16SR12WD · 7677
On stock
Price
€ 22,09
SV Inschroef Schotkoppeling BSPP - L/S
XSV16SR34WD · 15157
Not on stock
Price
€ 23,75
SV Inschroef Schotkoppeling BSPP - L/S
XSV20SR12WD · 27109
On stock
Price
€ 52,09
SV Inschroef Schotkoppeling BSPP - L/S
XSV20SR34WD · 15146
On stock
Price
€ 37,19
SV Inschroef Schotkoppeling BSPP - L/S
XSV20SR1WD · 23995
On stock
Price
€ 65,37
SV Inschroef Schotkoppeling BSPP - L/S
XSV25SR34WD · 15158
On stock
Price
€ 66,99
SV Inschroef Schotkoppeling BSPP - L/S
XSV25SR1WD · 15159
On stock
Price
€ 61,29
SV Inschroef Schotkoppeling BSPP - L/S
XSV25SR114WD · 15160
On stock
Price
€ 82,45
SV Inschroef Schotkoppeling BSPP - L/S
XSV30SR114WD · 15161
On stock
Price
€ 73,86
SV Inschroef Schotkoppeling BSPP - L/S
XSV38SR114WD · 15162
On stock
Price
€ 148,42

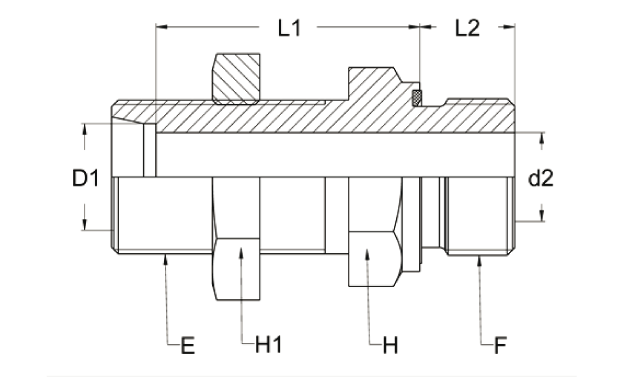

Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 Serie
|
 Pn/bar
|
Ø d1
|
D2
|
L1
|
L2
|
F
|
H
|
H1
|
E
|
Amount of this product left in stock
 Stock
|
The bruto price of the product
 Brutoprice
|
The netto price of the product
Nettoprice
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11622 | XSV06LR18WD | L | 315 | 6 | G 1/8" A | 34 | 8 | G 1/8" A | 17 | 17 | M12x1,5 | € 28.12 | € 19.68 | |||
| 11623 | XSV06LR14WD | L | 315 | 6 | G 1/4" A | 34 | 12 | G 1/4" A | 19 | 17 | M12x1,5 | € 48.00 | € 33.60 | |||
| 11624 | XSV08LR14WD | L | 315 | 8 | G 1/4" A | 34 | 12 | G 1/4" A | 19 | 19 | M14x1,5 | € 17.10 | € 11.97 | |||
| 11625 | XSV08LR38WD | L | 315 | 8 | G 3/8" A | 34 | 12 | G 3/8" A | 22 | 19 | M14x1,5 | € 22.92 | € 16.04 | |||
| 11626 | XSV08LR12WD | L | 315 | 8 | G 1/2" A | 35 | 14 | G 1/2" A | 27 | 19 | M14x1,5 | € 24.14 | € 16.90 | |||
| 11627 | XSV10LR14WD | L | 315 | 10 | G 1/4" A | 35 | 12 | G 1/4" A | 22 | 22 | M16x1,5 | € 18.13 | € 12.69 | |||
| 11628 | XSV10LR38WD | L | 315 | 10 | G 3/8" A | 35 | 12 | G 3/8" A | 22 | 22 | M16x1,5 | € 16.18 | € 11.33 | |||
| 11629 | XSV10LR12WD | L | 315 | 10 | G 1/2" A | 35 | 14 | G 1/2" A | 27 | 22 | M16x1,5 | € 22.17 | € 15.52 | |||
| 11630 | XSV12LR14WD | L | 315 | 12 | G 1/4" A | 36 | 12 | G 1/4" A | 24 | 24 | M18x1,5 | € 25.10 | € 17.57 | |||
| 7987 | XSV12LR38WD | L | 315 | 12 | G 3/8" A | 36 | 12 | G 3/8" A | 24 | 24 | M18x1,5 | € 19.71 | € 13.80 | |||
| 7670 | XSV12LR12WD | L | 315 | 12 | G 1/2" A | 36 | 14 | G 1/2" A | 27 | 24 | M18x1,5 | € 20.19 | € 14.13 | |||
| 7675 | XSV15LR12WD | L | 315 | 15 | G 1/2" A | 38 | 14 | G 1/2" A | 30 | 30 | M22x1,5 | € 21.84 | € 15.29 | |||
| 11631 | XSV15LR34WD | L | 315 | 15 | G 3/4" A | 39 | 16 | G 3/4" A | 32 | 30 | M22x1,5 | € 66.29 | € 46.40 | |||
| 11632 | XSV18LR12WD | L | 315 | 18 | G 1/2" A | 40 | 14 | G 1/2" A | 36 | 36 | M26x1,5 | € 32.65 | € 22.86 | |||
| 11633 | XSV18LR34WD | L | 315 | 18 | G 3/4" A | 40 | 16 | G 3/4" A | 36 | 36 | M26x1,5 | € 67.68 | € 47.38 | |||
| 11634 | XSV18LR1WD | L | 315 | 18 | G 1" A | 42 | 18 | G 1" A | 41 | 36 | M26x1,5 | € 88.11 | € 61.68 | |||
| 14662 | XSV22LR34WD | L | 160 | 22 | G 3/4" A | 42 | 16 | G 3/4" A | 41 | 41 | M30x2,0 | € 51.55 | € 36.09 | |||
| 14663 | XSV28LR34WD | L | 160 | 28 | G 3/4" A | 43 | 16 | G 3/4" A | 46 | 46 | M36x2,0 | € 57.45 | € 40.22 | |||
| 14664 | XSV28LR1WD | L | 160 | 28 | G 1" A | 43 | 18 | G 1" A | 46 | 46 | M36x2,0 | € 53.17 | € 37.22 | |||
| 16530 | XSV35LR114WD | L | 250 | 35 | G 1 1/4" | 47 | 20 | G 1.1/4" A | 55 | 55 | M45x2,0 | € 110.79 | € 77.55 | |||
| 17454 | XSV42LR112WD | L | 250 | 42 | G 1 1/2" | 47 | 22 | G 1.1/2" A | 65 | 65 | M52x2,0 | € 160.37 | € 112.26 | |||
| 7669 | XSV10SR38WD | S | 630 | 10 | G 3/8" A | 38 | 12 | G 3/8" A | 24 | 24 | M18x1,5 | € 38.32 | € 26.82 | |||
| 7672 | XSV12SR38WD | S | 630 | 12 | G 3/8" A | 38 | 12 | G 3/8" A | 27 | 27 | M20x1,5 | € 22.92 | € 16.04 | |||
| 16383 | XSV12SR12WD | S | 630 | 12 | G 1/2" | 40 | 14 | G 1/2" A | 27 | 27 | M20x1,5 | € 17.94 | € 12.56 | |||
| 7674 | XSV14SR12WD | S | 630 | 14 | G 1/2" A | 41 | 14 | G 1/2" A | 30 | 30 | M22x1,5 | € 51.40 | € 35.98 | |||
| 7677 | XSV16SR12WD | S | 630 | 16 | G 1/2" A | 41 | 14 | G 1/2" A | 32 | 32 | M24x1,5 | € 31.55 | € 22.09 | |||
| 15157 | XSV16SR34WD | S | 400 | 16 | G 3/4" | 44 | 16 | G 3/4" A | 32 | 32 | M24x1,5 | € 33.93 | € 23.75 | |||
| 27109 | XSV20SR12WD | S | 420 | 20 | G 1/2" | 44 | 14 | G 1/2" A | 41 | 41 | M30x2,0 | € 74.41 | € 52.09 | |||
| 15146 | XSV20SR34WD | S | 400 | 20 | G 3/4" | 44 | 16 | G 3/4" A | 41 | 41 | M30x2,0 | € 53.13 | € 37.19 | |||
| 23995 | XSV20SR1WD | S | 420 | 35 | G 1" | 47 | 18 | G 1" A | 41 | 41 | M30x2,0 | € 93.38 | € 65.37 | |||
| 15158 | XSV25SR34WD | S | 400 | 25 | G 3/4" | 47 | 16 | G 3/4" A | 46 | 46 | M36x2,0 | € 95.70 | € 66.99 | |||
| 15159 | XSV25SR1WD | S | 400 | 25 | G 1" | 47 | 18 | G 1" A | 46 | 46 | M36x2,0 | € 87.55 | € 61.29 | |||
| 15160 | XSV25SR114WD | S | 400 | 25 | G 1.1/4" | 49 | 20 | G 1.1/4" A | 50 | 46 | M36x2,0 | € 117.79 | € 82.45 | |||
| 15161 | XSV30SR114WD | S | 400 | 30 | G 1.1/4" | 51 | 20 | G 1.1/4" A | 55 | 50 | M42x2,0 | € 105.51 | € 73.86 | |||
| 15162 | XSV38SR114WD | S | 315 | 38 | G 1.1/4" | 53 | 20 | G 1.1/4" A | 65 | 65 | M52x2,0 | € 212.03 | € 148.42 |
