Terugslagklep

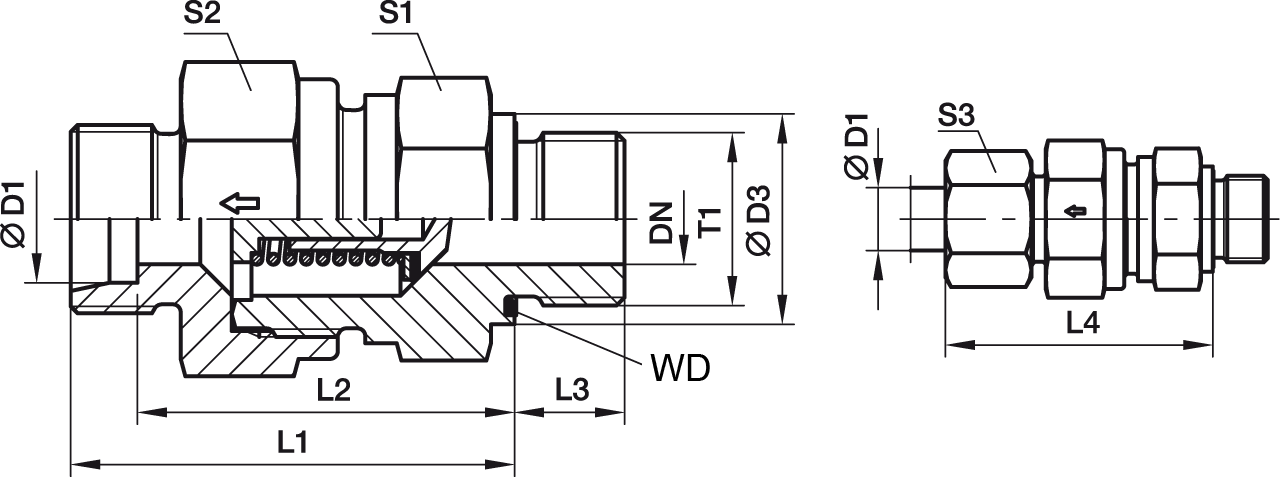

Terugslagklep RHV BSP WD - L
Uitvoering: terugslagklep: DIN 24° conus / BSPP met elastische dichting (WD)
Openingsdruk 1,0 bar (Standaard type). Op aanvraag met openingsdruk 0,5, 2,0 of 3,0 bar.
Materiaal: standaard verzinkt automatenstaal, roestvaststaal op aanvraag.
Wordt geleverd zonder moer/snijring.
-
Terugslagklep RHV BSP WD - L XRHV08LR14WD1barStockPrice € 24.45 -
Terugslagklep RHV BSP WD - L XRHV10LR14WD1barStockPrice € 30.30
-
Terugslagklep RHV BSP WD - L XRHV12LR38WD1barStockPrice € 36.88
-
Terugslagklep RHV BSP WD - L XRHV22LR34WD01barStockPrice € 98.73
Code you can use to quickly order a product  Quick code |
Number of the product  Part nr |
 Serie
|
Pn/bar
|
Ø d1
|
T1
|
Amount of this product left in stock
 Stock
|
The bruto price of the product
 Brutoprice
|
The netto price of the product
Nettoprice
|
The quantity you want to order of this product
 Amount |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 11299 | XRHV08LR14WD1BAR | L | 315 | 8 | G 1/4 A | € 34.93 | € 24.45 | |||
| 11300 | XRHV10LR14WD1BAR | L | 315 | 10 | G 1/4 A | € 43.28 | € 30.30 | |||
| 11301 | XRHV12LR38WD1BAR | L | 315 | 12 | G 3/8 A | € 52.69 | € 36.88 | |||
| 11302 | XRHV22LR34WD01BAR | L | 250 | 22 | G 3/4 A | € 141.04 | € 98.73 |
