WE 90° Inschroefkop. BSPT - LL/L/S

90° Koppeling - Staal

WE 90° Inschroefkop. BSPT - LL/L/S

90° Koppeling - Staal

WE 90° Inschroefkop. BSPT - LL/L/S

De WE haakse inschroefkoppeling is de standaard voor het creëren van een haakse verbinding tussen een hydraulische leiding en een component met een inwendige schroefdraad. Deze koppeling maakt gebruik van een conische BSPT-draad aan de inschroefzijde en een 24° pijpopname aan de andere zijde. Dankzij de hoogwaardige verzinkte afwerking bent u verzekerd van een duurzame en corrosiebestendige oplossing voor uiteenlopende industriële toepassingen.

  • Conische BSPT-verbinding: Voorzien van een tapse schroefdraad voor een stevige en betrouwbare montage in hydraulische blokken of behuizingen.

  • Universele Aansluiting: Volledig conform de internationale ISO 8434-1 / DIN 2353 normering met een 24° conusverbinding.

  • Hoogwaardige Bescherming: Vervaardigd uit verzinkt automatenstaal voor optimale weerstand tegen roest en slijtage.

  • Maatwerk op Aanvraag: Naast de standaard uitvoering in verzinkt staal is dit product voor specifieke toepassingen ook verkrijgbaar in roestvaststaal (RVS).

  • Let op: Deze koppeling wordt standaard geleverd zonder moer en snijring.

XWE04LLR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE04LLR18BSPT · 11428
On stock
Price € 6,69
XWE06LLR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE06LLR18BSPT · 11435
On stock
Price € 6,91
XWE08LLR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08LLR18BSPT · 11440
On stock
Price € 7,82
XWE06LR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE06LR18BSPT · 11436
On stock
Price € 4,94
XWE06LR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE06LR14BSPT · 11429
On stock
Price € 5,66
XWE08LR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08LR18BSPT · 11448
On stock
Price € 7,40
XWE08LR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08LR14BSPT · 7841
On stock
Price € 5,65
XWE08LR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08LR38BSPT · 7842
On stock
Price € 17,20
XWE08LR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08LR12BSPT · 25270
Not on stock
Price € 26,74
XWE10LR18BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE10LR18BSPT · 11443
On stock
Price € 18,29
XWE10LR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE10LR14BSPT · 7800
On stock
Price € 6,76
XWE10LR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE10LR38BSPT · 7801
Not on stock
Price € 8,03
XWE10LR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE10LR12BSPT · 25271
Not on stock
Price € 11,17
XWE12LR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE12LR14BSPT · 7806
On stock
Price € 7,50
XWE12LR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE12LR38BSPT · 7807
On stock
Price € 7,23
XWE12LR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE12LR12BSPT · 7805
On stock
Price € 10,45
XWE15LR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE15LR38BSPT · 7814
On stock
Price € 10,63
XWE15LR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE15LR12BSPT · 11444
On stock
Price € 8,53
XWE18LR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE18LR12BSPT · 7818
On stock
Price € 12,07
XWE18LR34BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE18LR34BSPT · 25275
Not on stock
Price € 21,78
XWE22LR34BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE22LR34BSPT · 7823
On stock
Price € 21,78
XWE28LR1BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE28LR1BSPT · 16289
Not on stock
Price € 34,44
XWE35LR114BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE35LR114BSPT · 7831
Not on stock
Price € 57,28
XWE42LR112BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE42LR112BSPT · 25285
Not on stock
Price € 69,93
XWE06SR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE06SR14BSPT · 11432
On stock
Price € 5,81
XWE08SR14BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE08SR14BSPT · 11439
Not on stock
Price € 6,27
XWE10SR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE10SR38BSPT · 11445
On stock
Price € 8,49
XWE12SR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE12SR38BSPT · 11452
On stock
Price € 7,69
XWE12SR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE12SR12BSPT · 25272
Not on stock
Price € 10,70
XWE14SR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE14SR38BSPT · 25273
Not on stock
Price € 16,64
XWE16SR38BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE16SR38BSPT · 25274
Not on stock
Price € 14,46
XWE16SR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE16SR12BSPT · 7816
Not on stock
Price € 13,31
XWE20SR12BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE20SR12BSPT · 7820
On stock
Price € 32,90
XWE20SR34BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE20SR34BSPT · 7821
Not on stock
Price € 33,87
XWE25SR34BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE25SR34BSPT · 25278
Not on stock
Price € 33,38
XWE25SR1BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE25SR1BSPT · 7825
On stock
Price € 31,99
XWE30SR1BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE30SR1BSPT · 25280
Not on stock
Price € 60,75
XWE30SR114BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE30SR114BSPT · 7829
Not on stock
Price € 67,85
XWE38SR112BSPT
WE 90° Inschroefkop. BSPT - LL/L/S
XWE38SR112BSPT · 7832
On stock
Price € 83,43
Code you can use to quickly order a product
Quick code
Number of the product

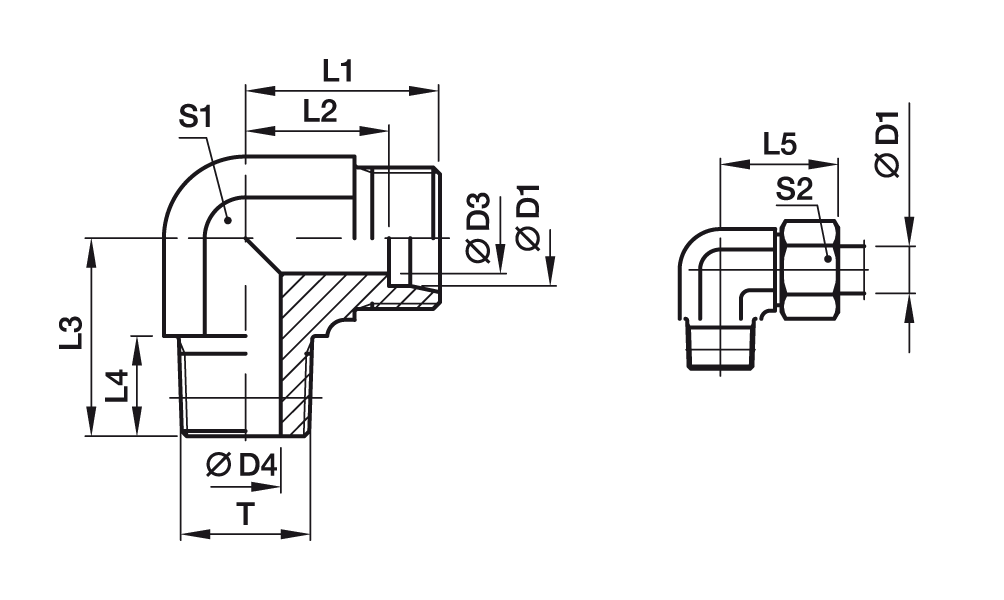

Part nr		 Serie Pn/bar Ø d1 Ø d3 T L1 L2 L3 L4 S1
Amount of this product left in stock
Stock
The bruto price of the product
Brutoprice
The netto price of the product
Nettoprice
The quantity you want to order of this product
Amount
11428 XWE04LLR18BSPT LL 100 04 M6X1 1/8" 15 11 17 - 9 € 9.55 € 6.69
11435 XWE06LLR18BSPT LL 100 06 M10X1 1/8" 15 9.5 17 - 9 € 9.87 € 6.91
11440 XWE08LLR18BSPT LL 100 08 M12X1 1/8" 17 11.5 20 - 12 € 11.17 € 7.82
11436 XWE06LR18BSPT L 315 06 M12X1.5 1/8" 19 12 20 8 12 € 7.05 € 4.94
11429 XWE06LR14BSPT L 315 06 M12X1.5 1/4" 21 14 26 12 12 € 8.09 € 5.66
11448 XWE08LR18BSPT L 315 08 M14X1.5 1/8" 21 14 26 8 12 € 10.57 € 7.40
7841 XWE08LR14BSPT L 315 08 M14X1.5 1/4" 21 14 26 12 12 € 8.07 € 5.65
7842 XWE08LR38BSPT L 315 08 M14X1.5 3/8" 24 17 28 12 17 € 24.57 € 17.20
25270 XWE08LR12BSPT L 315 08 M14X1.5 1/2" 26 19 34 14 19 € 38.20 € 26.74
11443 XWE10LR18BSPT L 315 10 M16X1.5 1/8" 22 15 22 8 14 € 26.13 € 18.29
7800 XWE10LR14BSPT L 315 10 M16X1.5 1/4" 22 15 27 12 14 € 9.66 € 6.76
7801 XWE10LR38BSPT L 315 10 M16X1.5 3/8" 24 17 28 12 17 € 11.47 € 8.03
25271 XWE10LR12BSPT L 315 10 M16X1.5 1/2" 28 21 34 14 19 € 15.95 € 11.17
7806 XWE12LR14BSPT L 315 12 M18X1.5 1/4" 24 17 28 12 17 € 10.71 € 7.50
7807 XWE12LR38BSPT L 315 12 M18X1.5 3/8" 24 17 28 12 17 € 10.33 € 7.23
7805 XWE12LR12BSPT L 315 12 M18X1.5 1/2" 28 21 34 14 19 € 14.93 € 10.45
7814 XWE15LR38BSPT L 315 15 M22X1.5 3/8" 28 21 34 12 19 € 15.19 € 10.63
11444 XWE15LR12BSPT L 315 15 M22X1.5 1/2" 28 21 34 14 19 € 12.18 € 8.53
7818 XWE18LR12BSPT L 315 18 M26X1.5 1/2" 31 23.5 36 14 24 € 17.24 € 12.07
25275 XWE18LR34BSPT L 315 18 M26X1.5 3/4" 34 26.5 42 16 27 € 31.11 € 21.78
7823 XWE22LR34BSPT L 160 22 M30X2 3/4" 35 27.5 47 16 27 € 31.11 € 21.78
16289 XWE28LR1BSPT L 160 28 M36X2 1" 38 30.5 48 18 36 € 49.20 € 34.44
7831 XWE35LR114BSPT L 160 35 M45X2 1.1/4" 45 34.5 54 20 41 € 81.83 € 57.28
25285 XWE42LR112BSPT L 160 42 M52X2 1.1/4" 51 40 61 22 50 € 99.90 € 69.93
11432 XWE06SR14BSPT S 630 06 M14X1.5 1/4" 23 16 26 12 12 € 8.30 € 5.81
11439 XWE08SR14BSPT S 630 08 M16X1.5 1/4" 24 17 27 12 14 € 8.95 € 6.27
11445 XWE10SR38BSPT S 630 10 M18X1.5 3/8" 25 17.5 28 12 17 € 12.13 € 8.49
11452 XWE12SR38BSPT S 630 12 M20X1.5 3/8" 29 21.5 28 12 17 € 10.99 € 7.69
25272 XWE12SR12BSPT S 630 12 M20X1.5 1/2" 30 22.5 32 14 19 € 15.29 € 10.70
25273 XWE14SR38BSPT S 630 14 M22X1.5 3/8" 30 22 30 12 19 € 23.77 € 16.64
25274 XWE16SR38BSPT S 400 16 M24X1.5 3/8" 33 24.5 32 12 24 € 20.65 € 14.46
7816 XWE16SR12BSPT S 400 16 M24X1.5 1/2" 33 24.5 32 14 24 € 19.01 € 13.31
7820 XWE20SR12BSPT S 400 20 M30X2 1/2" 37 26.5 36 14 27 € 47.00 € 32.90
7821 XWE20SR34BSPT S 400 20 M30X2 3/4" 37 26.5 47 16 27 € 48.39 € 33.87
25278 XWE25SR34BSPT S 400 25 M36X2 3/4" 42 30 42 16 36 € 47.69 € 33.38
7825 XWE25SR1BSPT S 400 25 M36X2 1" 42 30 48 18 36 € 45.70 € 31.99
25280 XWE30SR1BSPT S 400 30 M42X2 1" 49 35.5 48 18 41 € 86.79 € 60.75
7829 XWE30SR114BSPT S 400 30 M42X2 1.1/4" 49 35.5 54 20 41 € 96.93 € 67.85
7832 XWE38SR112BSPT S 315 38 M52X2 1.1/2" 57 41 61 22 50 € 119.18 € 83.43
