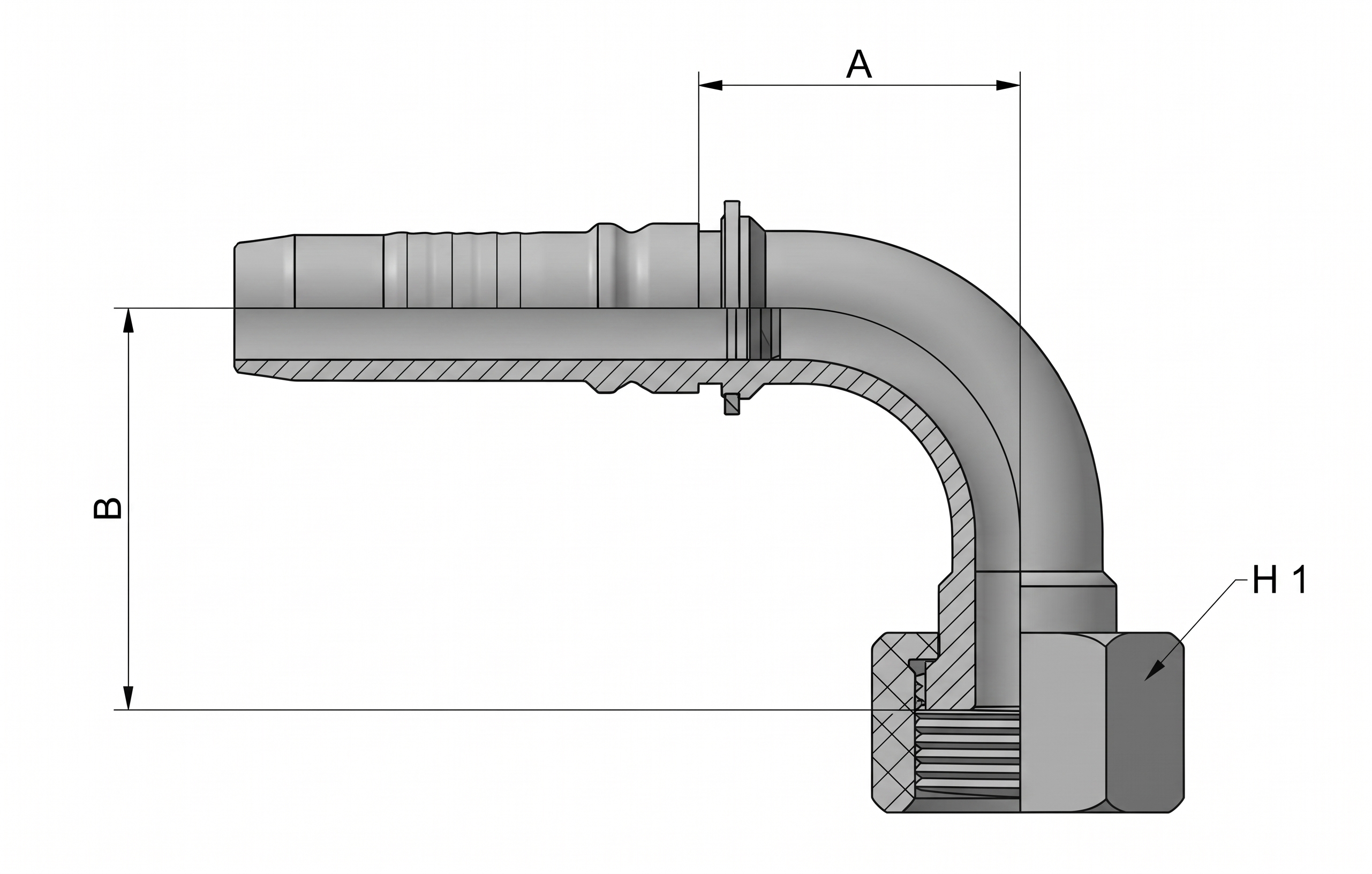

Uitvoering : 90° gebogen
Materiaal: standaard verzinkt automatenstaal, roestvaststaal op aanvraag
Aansluiting : UNF wartel binnendraad
Afdichting : O-ring ORFS (O’Ring Face Seal) according SAE J516
Code die je kunt gebruiken om snel een product te bestellen |
Nummer van het product |
|
|
|
|
|
|
|
|
Hoeveelheid van dit product nog in voorraad
|
De hoeveelheid die u van dit product wilt bestellen
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6425 | CIL12LORF90S12 | 3/4" | 19,0 | 12 | 1.3/16-12 | 14,0 | 36 | 58,0 | 53,0 | |||
| 6426 | CIL16LORF90S16 | 1" | 25,4 | 16 | 1.7/16-12 | 20,0 | 41 | 72,0 | 68,0 | |||
| 6427 | CIL20LORF90S20 | 1.1/4" | 31,8 | 20 | 1.11/16-12 | 26,0 | 50 | 88,0 | 83,0 | |||
| 6428 | CIL24LORF90S24 | 1.1/2" | 38,1 | 24 | 2-12 | 32,0 | 60 | 106,0 | 94,0 | |||
| 19714 | CIL16LORF90S12 | 3/4" | 19,0 | 12 | 1.7/16-12 | 14,0 | 41 | 72,0 | 68,0 |
