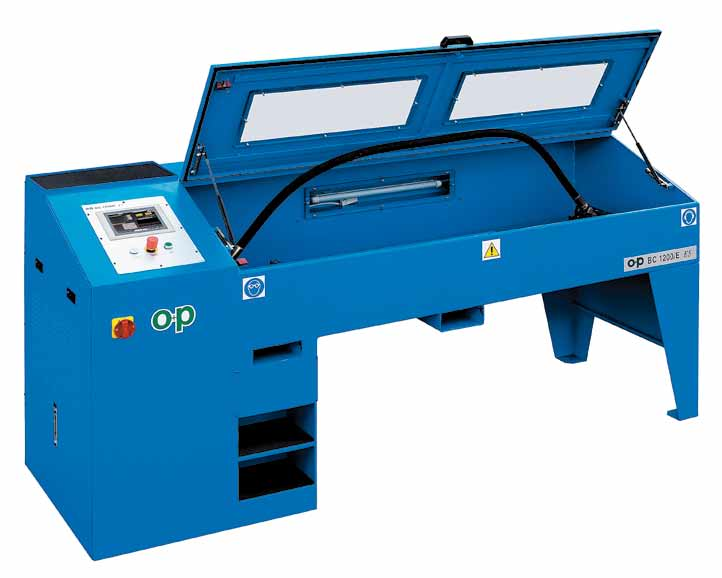

TESTBANK BC1200EES
TESTBANK BC1200EES
Testbank met PLC besturing en een max. testdruk van 1200 bar, voorzien van hydraulische drukverhoger.
Technical Features
| STATIC PRESSURE | 1200 bar (17400 psi) |
| DYNAMIC PRESSURE | 1200 bar (17400 psi) |
| MIN. STARTING PRESSURE | 100 bar (1450 psi) |
| PRESSURE CONTROL | AUTOMATIC |
| TEST | AUTOMATIC |
| TYPE OF DRIVE | hydraulic intensifier |
| TESTING LIQUID | OIL |
| N° OF MANIFOLD CONNECTIONS | N°6 Special quick connection - N° 2 1/4" BSP |
| N. MANIFOLDS | 2 |
| LIQUID FILLING | AUTOMATIC |
| FILLING FLOW | 17 Lt/min |
| PRESSURE DISCHARGE | AUTOMATIC |
| DOOR MECHANIC SAFETY DEVICE | AUTOMATIC |
| DOOR ELECTRIC SAFETY DEVICE | AUTOMATIC |
| STANDARD CHAMBER DIMENSIONS | 2000x830 mm (78.7''x32.6'') |
| BENCH DIMENSIONS | 2500x955x1200 mm (98.4''x37.5''x47.2'') |
| TANK | 110 Lt |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| WEIGHT WITHOUT OIL | 600 KG (1323 Lbs) |
| INTERNAL LIGHTNING | incl. |
| SHOCK-PROOF CHECKING WINDOWS | incl. |
| SUCTION FILTER | incl. |
| DELIVERY FILTER | incl. |
| OIL PROTECTING MESH | incl. |
| SHELVES FOR TOOLS | incl. |
| SLIDING MANIFOLDS | incl. |
| PLC AUTOMATIC CONTROL | incl. |
| USB CONNECTION CONFIGURATION | incl. |
| PC CONNECTION | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| ADAPTER | 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2'' |
| FIXED VOLUME MULTIPLIER | volume oli 0,325 lt |
